Y08040-E2

Speed: 40000 revolutions per minute, frequency: 1333Hz, rated power: 4kW, motor type: three-phase asynchronous induction motor, rated current: 8A, voltage: 380V, rated torque: (N.m) 2, clamping range: straight handle chuck

Online Consultation PDF

Instruction Manual
Application industry

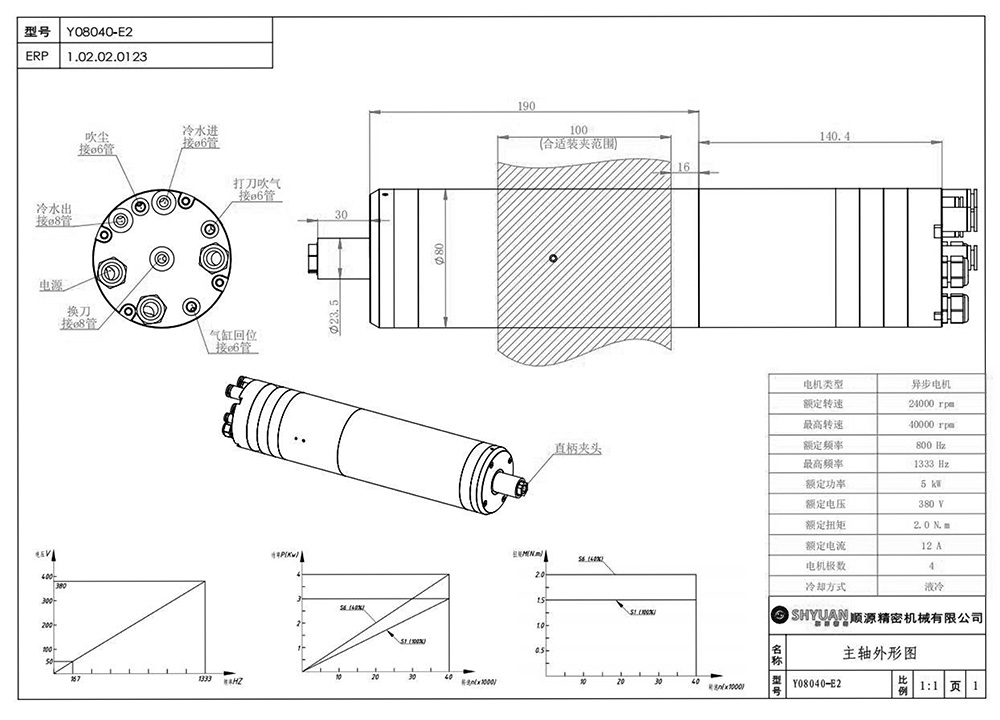

Drawing

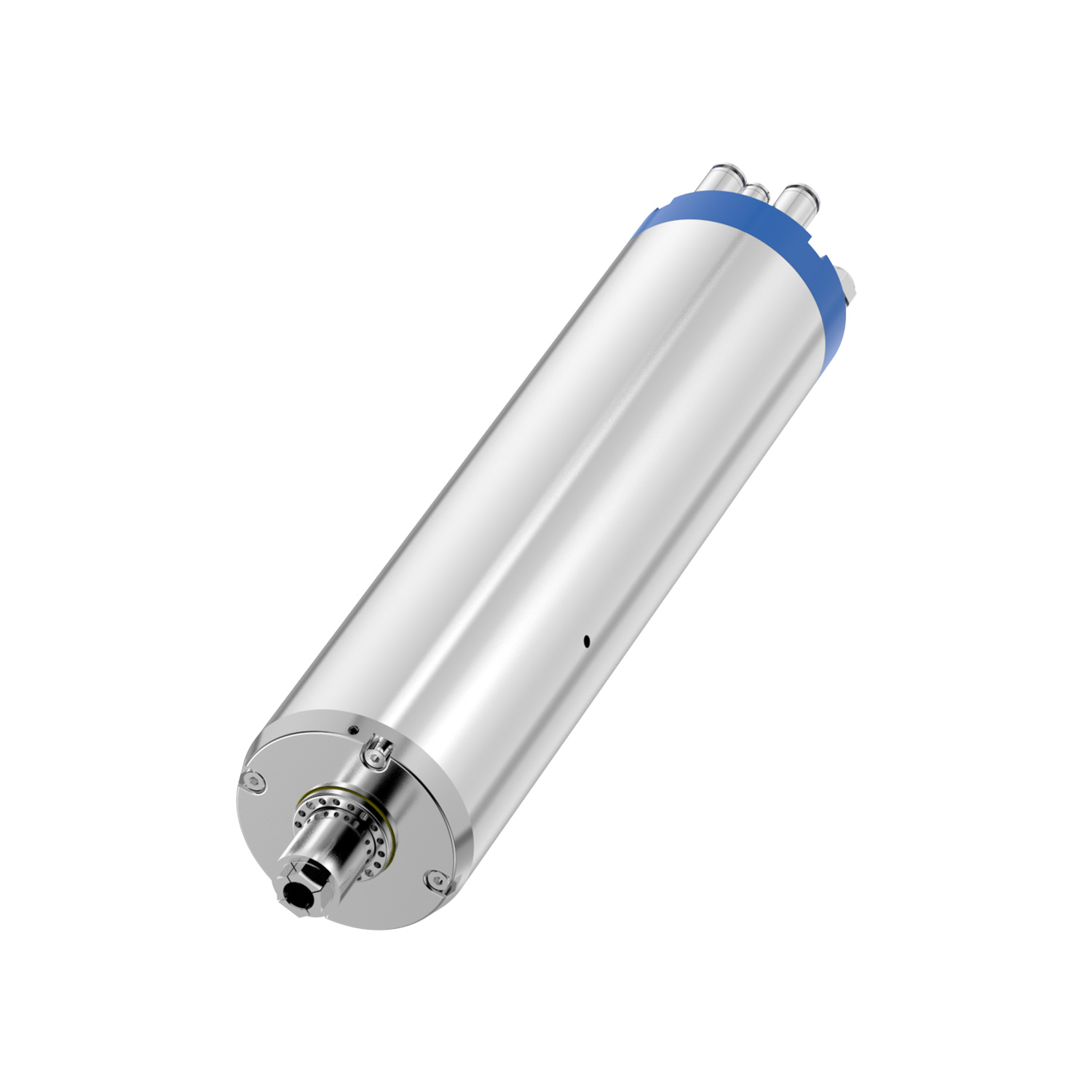

80 outer diameter electric spindle, widely used in aerospace, energy equipment, shipbuilding, automotive molds, and heavy machinery fields. Its core advantage lies in its maximum output of 40000 rpm, power of 3/4kW, and torque of 2.2N · m. It can efficiently process hard materials such as titanium alloy and high-strength steel, meeting heavy-duty requirements such as impeller milling and valve deburring;Supports automatic and manual tool changing functions,Ceramic hybrid bearing design extends lifespan and reduces downtime maintenance. collocationIP67 protection and water cooling cycle.
