Y06260-C2

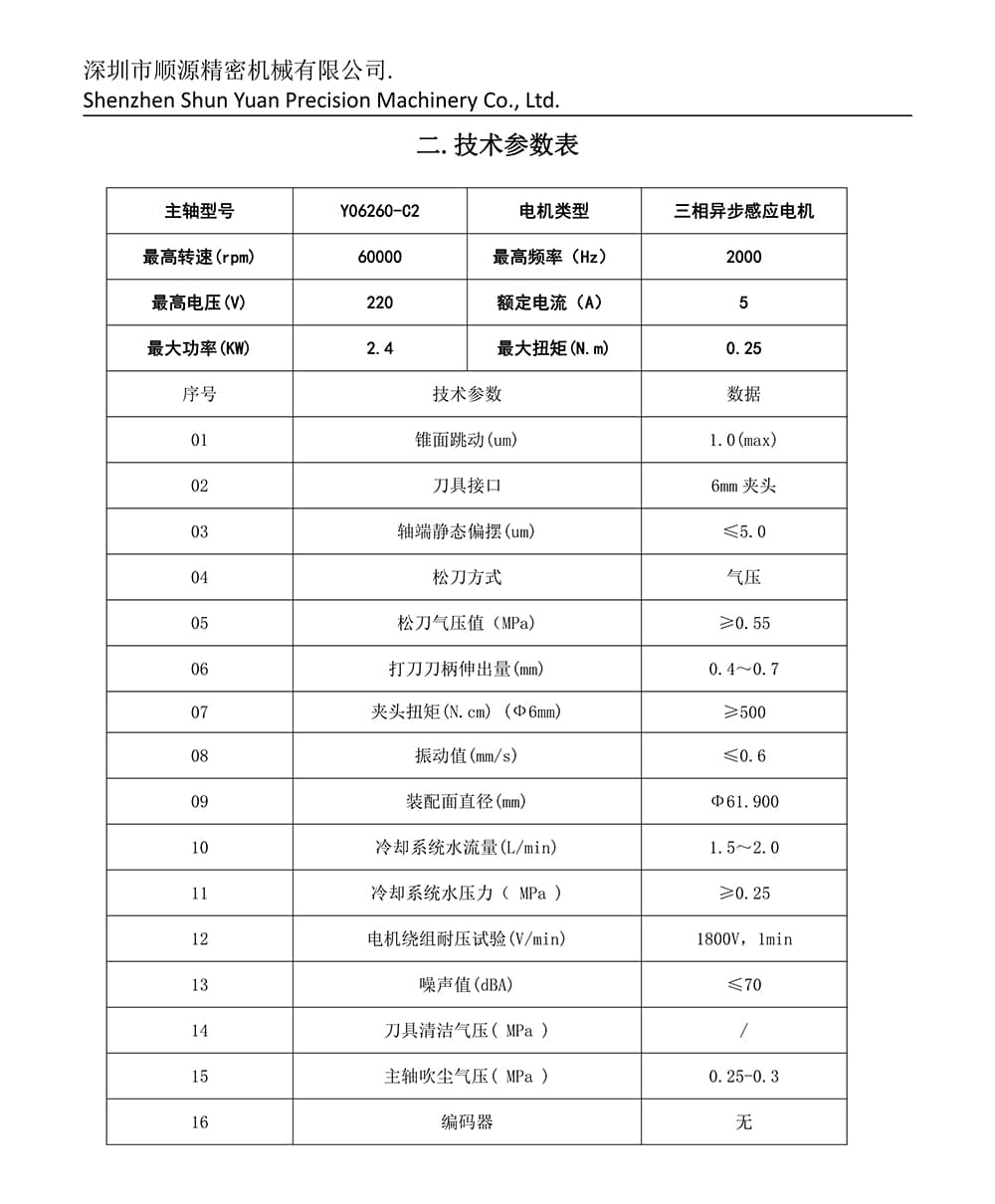

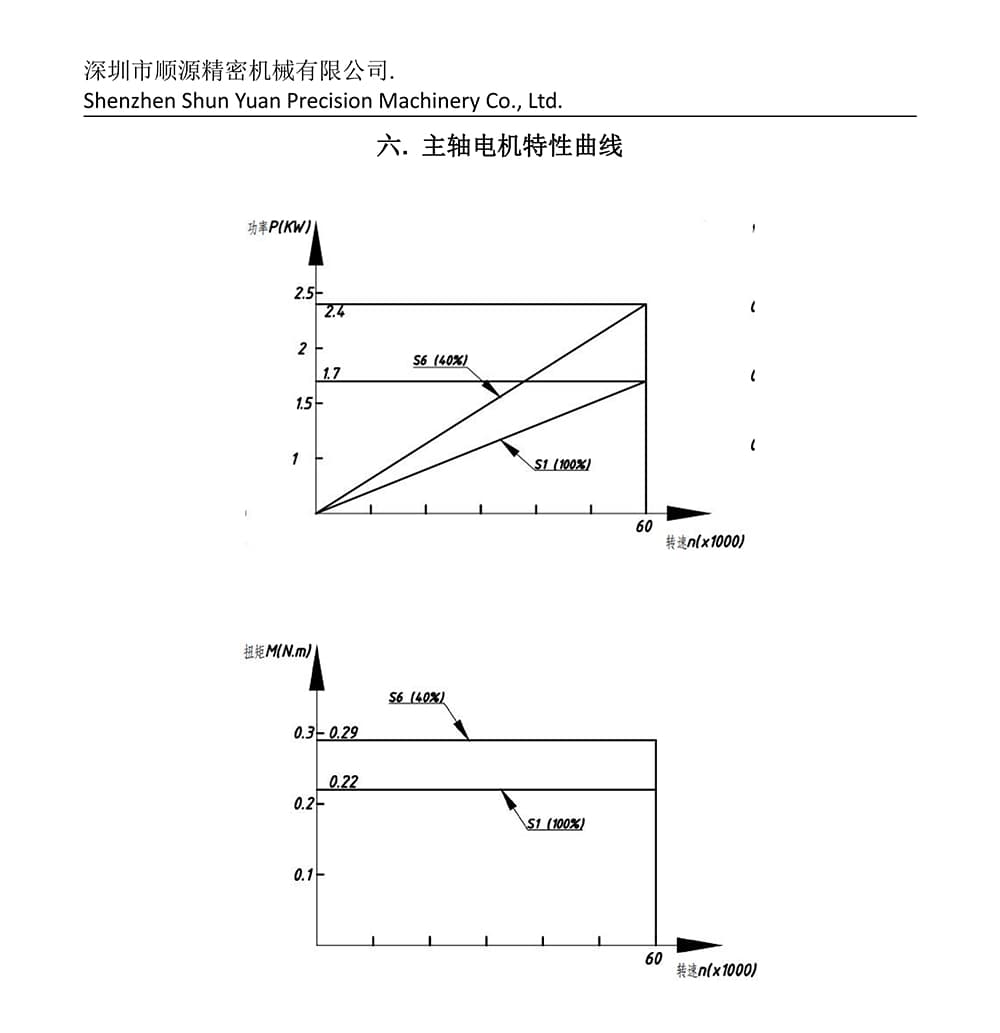

Speed: 60000 revolutions per minute, frequency: 2000Hz, rated power: 2.4kW, motor type: three-phase asynchronous induction motor, rated current: 5A, voltage: 220V, rated torque: (N.m) 0.25, clamping range: 6mm clamp head

Online Consultation PDF

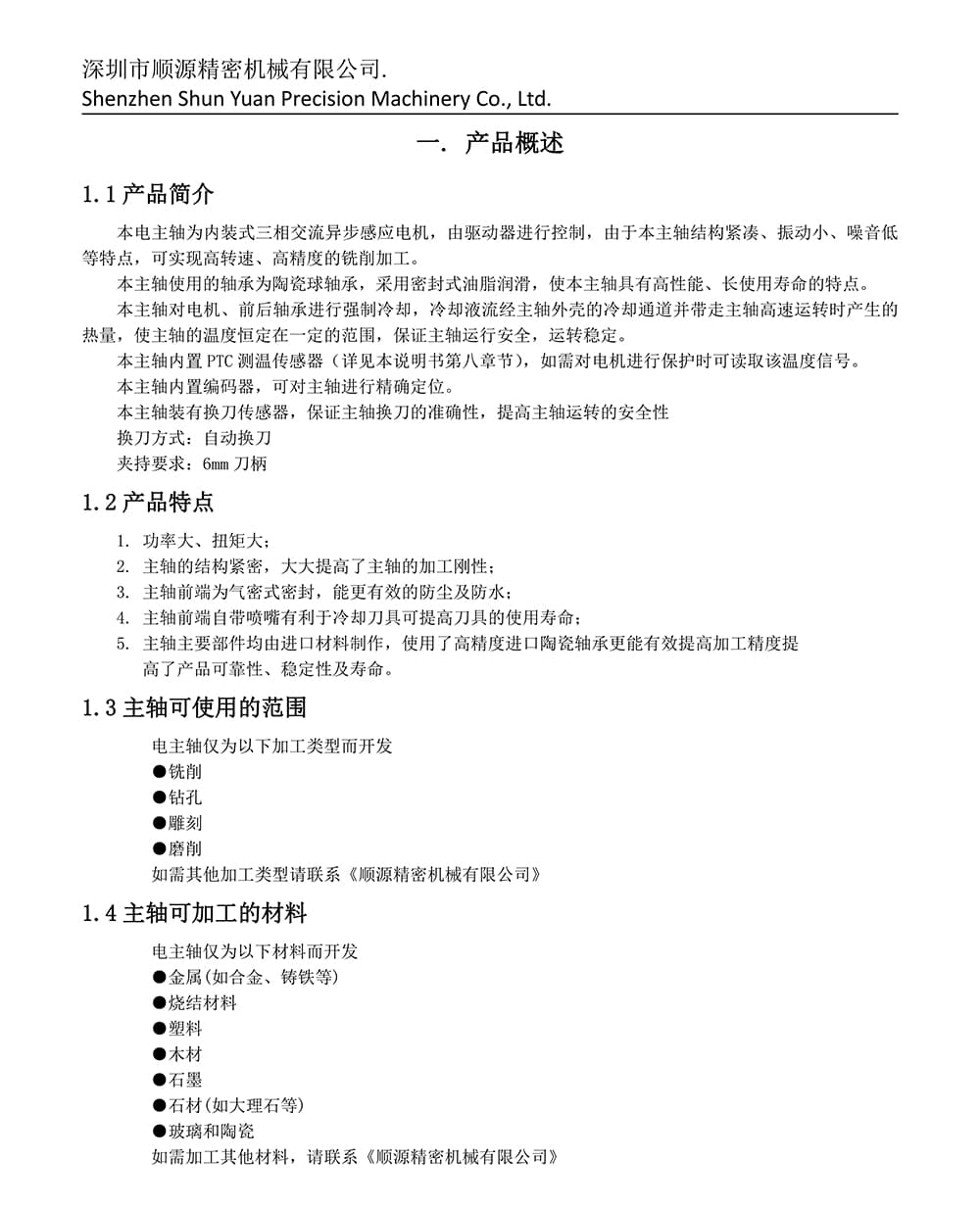

Instruction Manual
Application industry

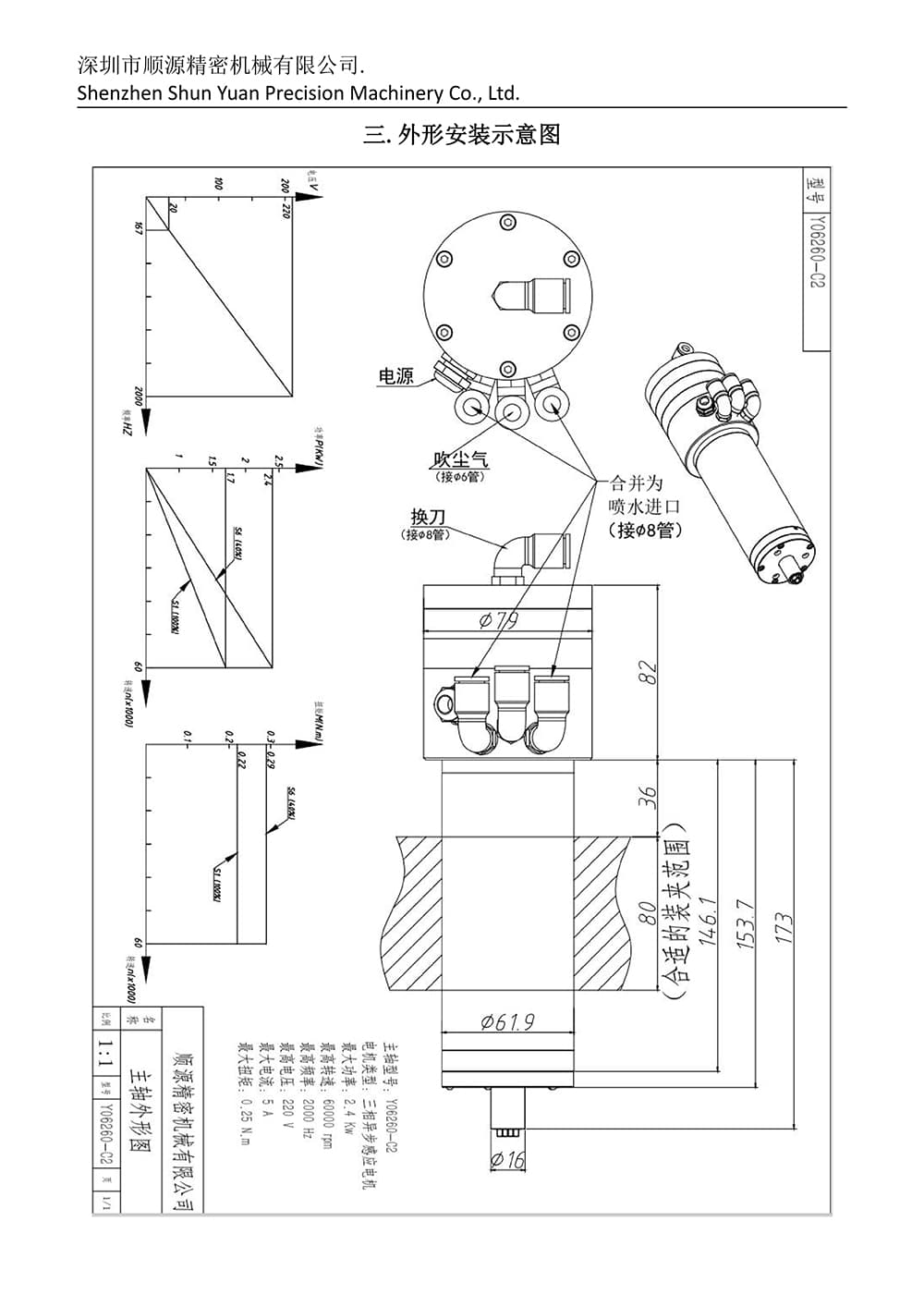

Drawing

62 outer diameter electric spindles are widely used in robotic arms, small machining centers, and automation equipment, serving industries such as automotive parts, 3C electronics, precision molds, and medical devices. Its core advantages lie in high speed (up to 80000rpm) and micrometer level accuracy (runout ≤ 3 μ m), which can efficiently complete precision tasks such as titanium alloy milling and mold microstructure carving. The dual mode of water cooling/air cooling ensures stable operation.
