Y010036-C3-深圳市顺源精密机械有限公司

Y010036-C3

Speed: 36000 revolutions per minute, frequency: 1200Hz, rated power: 7.5kW, motor type: three-phase asynchronous induction motor, rated current: 14A, voltage: 380V, rated torque: (N.m) 4.5, clamping range: ISO25

Online Consultation PDF

Instruction Manual
Application industry

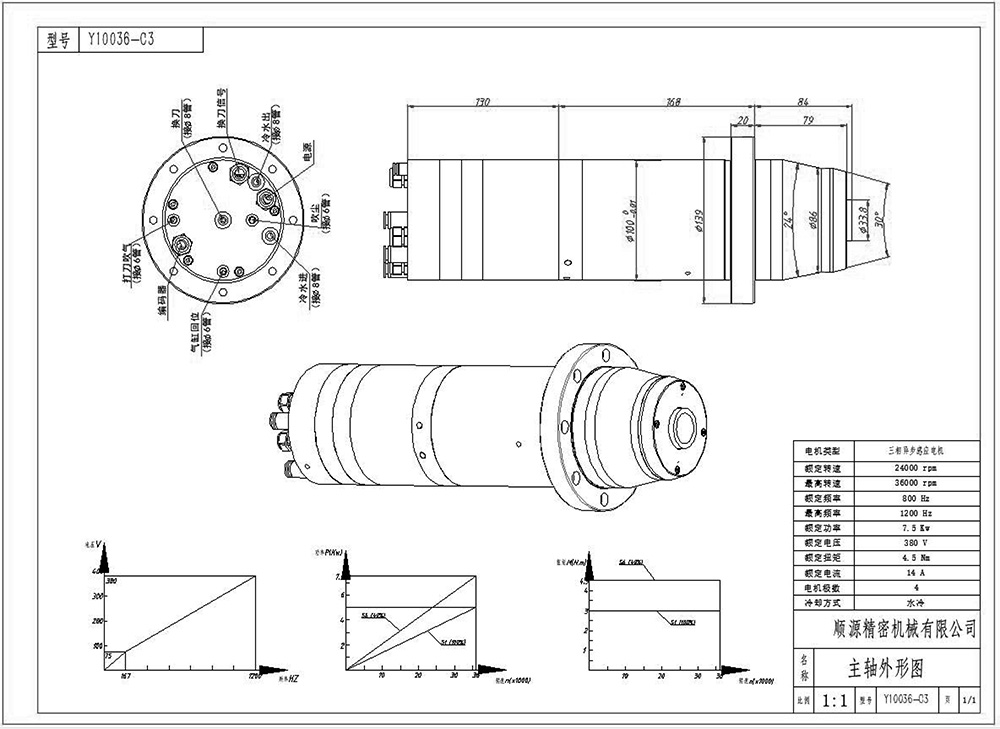

Drawing

100 outer diameter electric spindle, widely used in aerospace, automotive manufacturing, mold processing, energy equipment, and precision machineryIn other fields.Its core advantage lies in its highThe speed can reach36,000rpm， Stable torque output (such as4.5N·m&18,000rpm）， Efficient processing of hard materials such as titanium alloys and high-strength steels;Supports automatic and manual tool changing functions,Dynamic accuracy≤2μm， Ensure consistency of complex surfaces; Equipped with an internal cooling system (with a water pressure of up to 150 bar) to solve the problem of overheating during processing.
